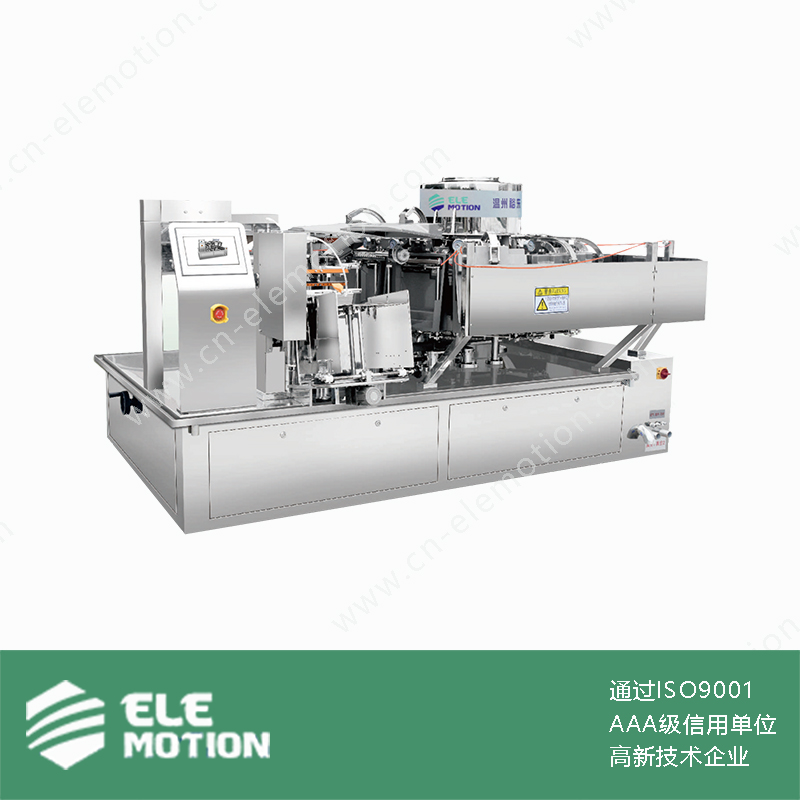

YD1010-1621 给袋式真空包装机
技术参数:(原YD810-1621升级为YD1010-1621)
机器型号 Machine Model |
YD1010-1621 |
||
工作流程 Work Process |
①上袋 ②打码(选配) ③开袋、撑袋 ④下料 ⑤下料 ⑥拉直 ⑦转至真空腔 ⑧盒盖 ⑨抽真空 ⑩封口 ⑪封口冷却 ⑫放气 ⑬出袋 ①bag feeding ②code printing(optional)③open the bag ④material feeding ⑤material feeding ⑥bag pulling ⑦passing to vacuum chambers ⑧close the lid ⑨vacuumize ⑩seal ⑪seal&cool ⑫deflate ⑬bag out |
||
设备材料 Equipment Material |
304不锈钢 304 stainless steel |
||
真空泵 Vacuum Pump |
德国普旭100/上海众德100(选配) BUSCH(German)/ ZD(Shanghai)(optional) |
||
气动元件 Pneumatic Components |
日本SMC/费斯托(标准件)可选配、台湾亚德客(非标件) SMC(Japan)/ FESTO(German)(optional)、Airtac(Taiwan)(non-standard parts) |
||
驱动方式 Driving Mode |
机械传动(凸轮齿轮杠杆全机械模式) Mechanical drive(cam gear lever full mechanical mode) |
||
封口方式 Heat Sealing |
瞬间加热封口、封口完成后瞬间冷却,以确保封口美观 Instant heat sealing and instant cooling, ensure nice sealing appearance |
||
包装速度 Packing Speed |
45 - 60包/分钟(根据产品特性和袋型而定) 45 - 60 bag/min(depending on ingredients) |
||
包装袋材料 Pouch Type |
三边封袋、铝箔袋、尼龙袋、纸袋等覆膜袋 3-side sealing bag, Aluminum foil bag, Nylon bag, Compound bag, paper bag, etc |
||
包装袋规格 Pouch Dimension |
宽:80 - 160mm 长:80 - 210mm W:80 - 160mm L:80 - 210mm |
||
主机功率Host Power |
≈9KW |
≈9KW |
|
耗气量Air Consumption |
≥0.6m³/分钟 |
≥0.6m³/min |
|
驱动电源 Drive Power |
三相五线 380V 50HZ 3-phase 5-wire system 380V 50HZ |
||
外形尺寸 Dimension |
2510 x 1600 x 1600mm(L x W x H)(不含提升机) 2510 x 1600 x 1600mm(L x W x H)(without elevator) |
||
主机重量Weight |
2.3T |
2.3 Tons |
|
冷却用水Cooling Water |
15-20℃, 3升/分钟 |
15-20℃, 3 liters/min |
|
使用环境 Use Of The Environment |
室温10-40℃,30-90%RH,无结露,无腐蚀性气体,无灰尘等其他恶劣坏境 Room temperature 10-40℃, 30-90% RH, No Condensation, No Corrosive gas, No dust and other harsh environment. |
